THR2 Thresholding and Scaling Accelerator

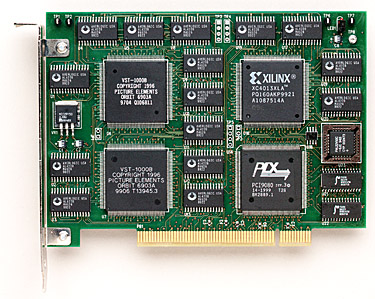

The THR2 Board is a hardware accelerator that provides high-speed and high-quality binarization of color and grayscale images.
The VST-1000 chip at the heart of the THR2 creates the world’s highest quality bitonal images via a technique called edge thresholding.
Even in the new age of color and grayscale imaging, high-quality bitonal images remain of central importance. The Picture Elements edge thresholding technology embodied in the VST-1000 chip and the THR2 Board provides that essential capability.
High-Quality, High-Speed Binary Images
from Color and Grayscale on the PCI Bus

The THR2 Board can serve as a production facility for bulk conversion of color or grayscale images to binary images. This may occur in color imaging systems which need to output to printers or fax modems. It may occur in systems where a color orientation is taken for archiving, but where OCR engines require binary images.

Performance

The VST-1000 chips operate at up to 30 million pixels per second and (in an embedded design) may be operated in parallel to achieves pixel rates as high as 80 million pixels per second or more. The THR2 Board is capable of keeping them fed with fresh grayscale data from host memory over the PCI bus at burst rates of up to 132 Mbytes per second. Output binary pixels are collected into 32 bit long words and buffered up for burst transfers back into a host memory output buffer at up to 132 Mbyte per second rates.

Scaling

Up-scaling hardware is included in the THR2 to cover the common requirement to create binary images at up to two times the resolution of the source color or grayscale images. This produces smoother, better-looking binary images which produce superior OCR results.

Despeckling

The VST-1000 chips have a despeckling capability built in. This permits removal of small, isolated black objects on the background of the binary image and of small white voids in the interior of characters or other black regions. While the size limits are programmable, the despeckler may remove all black speckles up to 4 by 4 pixels in size and all white regions up to 3 by 3 pixels in size. In addition, the connectivity (used to determine whether an object is isolated or not) may be programmed to be either 4-way or 8-way, allowing a better job at achieving the desired retention or elimination of halftone patterns.

Seeing Like the Eye Sees for Quality Images

The human eye extracts edge information at high resolution in the first stage of vision and pattern recognition. The edges in a scene at high resolution provide the location information upon which all further processing is based. Luminance (brightness or tonality or shading) and chrominance (color) information are handled at lower resolutions.

The bitonal images upon which much of the document imaging business traditionally has been based give a practical confirmation of these facts; bitonal images have high spatial resolution, but low tonal resolution or tonality. In fact, they only have two tones or shades: full white and full black.
The revolutionary edge thresholding method used by the Picture Elements VST-1000 integrated circuit permits the creation of very high definition binary images. These images are characterized by accurate stroke width rendition, exceptional, carefully-chiselled clarity of fine detail and superior reproduction of the broader, fuzzy edges seen in carbon copies and overnight express waybills.

To Buy The THR2

Price: $1995 USD

United States
Law Cypress
Picture Elements
Japan
For use with Kodak products in Japan
Kodak Japan
Asia/Pacific Outside Japan
Picture Elements
We are also seeking a leading imaging distributor for this region.
Europe
Picture Elements
We are also seeking a leading imaging distributor for this region.

Kodak 4500 Color Scanner Owners

Your Kodak 4500 scanner and its ISIS and TWAIN drivers already support the THR2 Board!

Just buy a THR2 and plug it into your scanning PC for an immediate quality improvement while running in duplex at full speed.
